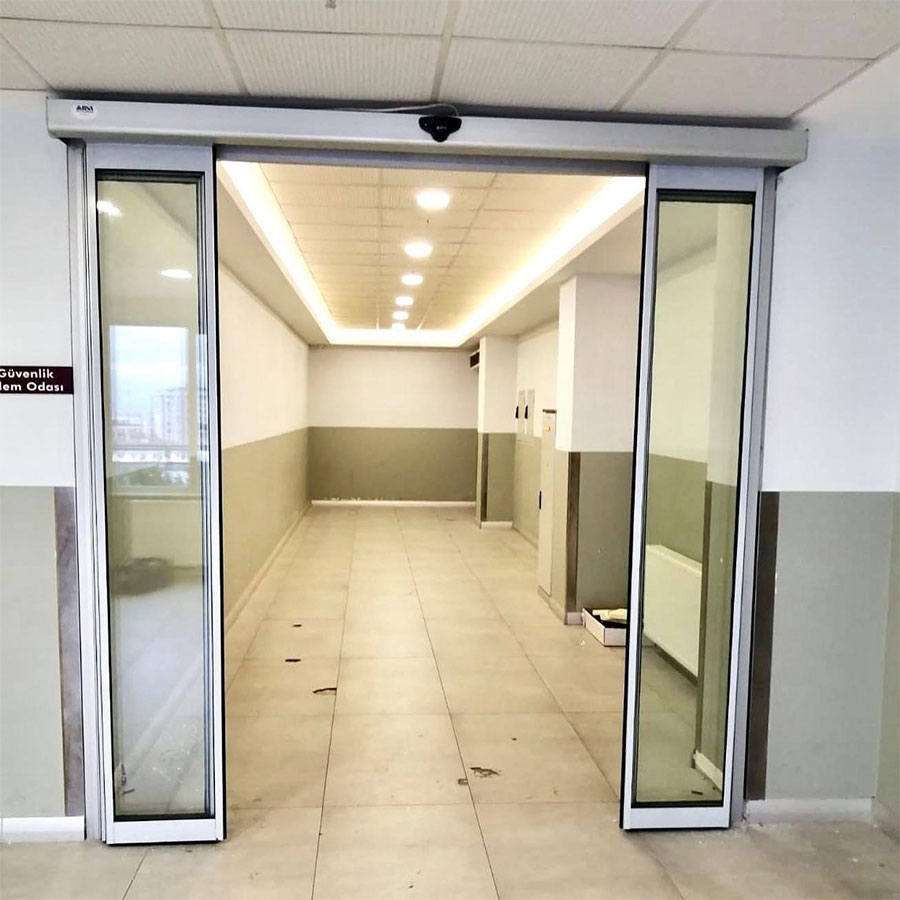

The iCat A110 T2-T4 model Telescopic photocell door leaves fit perfectly into any architectural environment, even in confined spaces, thanks to their size.
Request Quotation iCat® Telescopic Automatic Door
Superior performance iCat encoder motor and German Dunker DC encoder motor options,
Simple Turkish design, easy installation. No need for blind frame application,
Self-cleaning rail system,
Patented profile system.
3,000,000 times opening/closing test in our factory, with RSA Warranty...
FRONT COVER
Available in natural or anodized aluminum.
Plastic safety "parachute" that can be easily installed together with the fuselage.
Narrow and wide series wings.
Designed for locking in open position for easy installation.
DRIVE GROUP
24 Vdc gear motor with optical reader.
Control unit.
Complete with 2 wheels or 4 wheels (for the iCat A110 2-wing version)...
WHEELS
Aluminum
2 polyamide support wheels.
Wheel height adjustment (+-) 7,5 mm
iCat A110 CONTROL UNIT
iCat control unit microprocessor with locking batteries and electromechanical locking system.
220 Vac circuit on/off power unit.
Removable terminal panel.
Automatic adjustments
Open and closed position definition.
Speed selection, optimal acceleration or deceleration.
Photocell test.
150 N force impact protection device during operation.
Speed adjustment and KUR application option possible directly on the card (no external program required)
RESET (restart) function.
4 adjustable output points.
2 emergency entry points.
Locking function.
Alarm function.
LCD display to detect status and damage.
Opening and closing speed adjustment.
Pause timing.
Night pause.
Motor lock
Technical:
Load carrying capacity
A110 T2- 110+110.=220 Kg.
A110 T4- 60+60+60+60 =240 Kg.
Wheel system
By means of anti-static synthetic material and gears belt on reinforced nylon carriers.
Conveyor main body (mechanism body)
234 mm X 110 mm extrusion aluminum
Opening speed
10 ÷ 160 cm/s (10-160cm/hadjustable)
Closing speed
10 ÷ 140 cm/s (10-140cm/hadjustable)
Braking speed
0.1 saniye
Pause time
0 ÷ 30 s (0-30 s. adjustable)
Night mode pause time
0 ÷ 240 s (0-30 sadjustable)
Electrical supply
230 V ac - 50 (60) Hz
Power consumption
100 W
Engine
24 V DC encoder ile
Emergency performance
24 V DC yedek batarya (30 mn. Non-stop)
Control panel
E110 kontrol ünitesi,
Accessory or additional product supply
24 V DC, 0.5 A
Crash blocking device
Standard (electronically standard blocking tool with encoder)
Photocell safety system
Standard (can work integrated with both safety eyes and combined radar)
