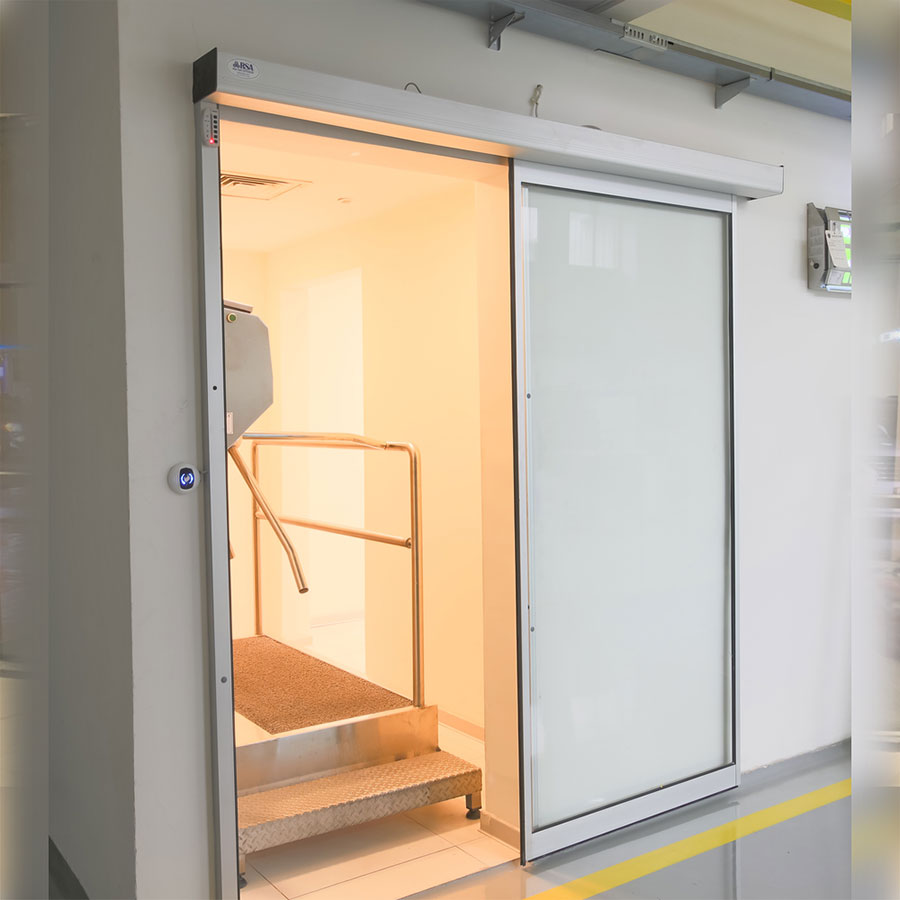

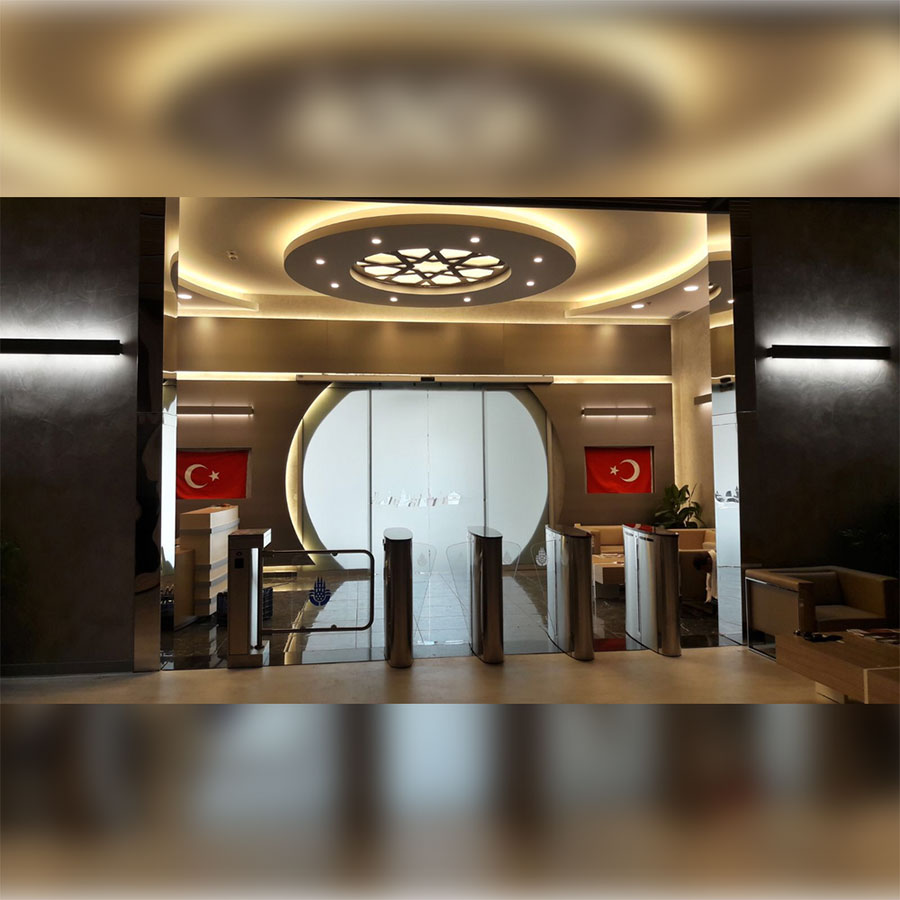

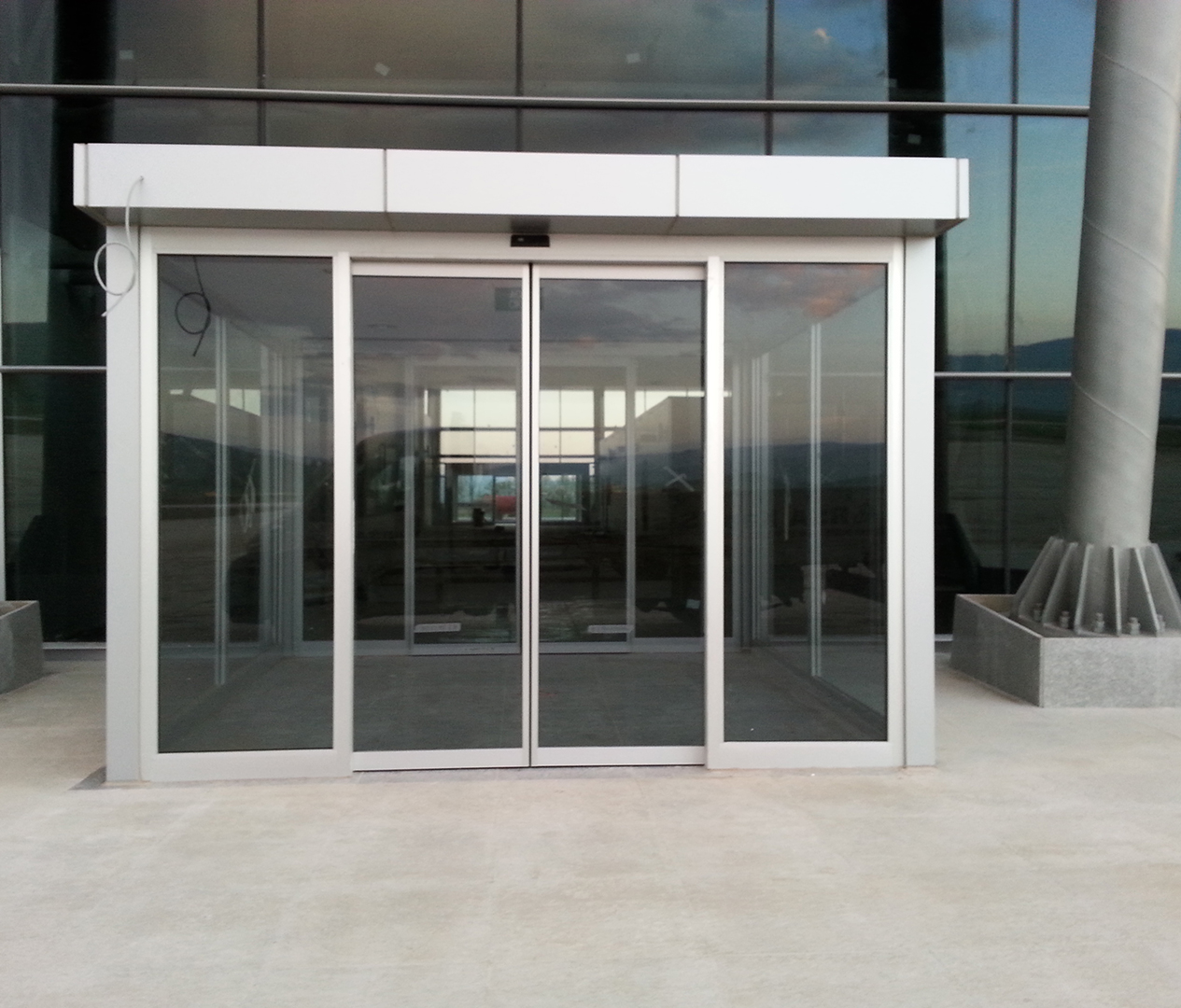

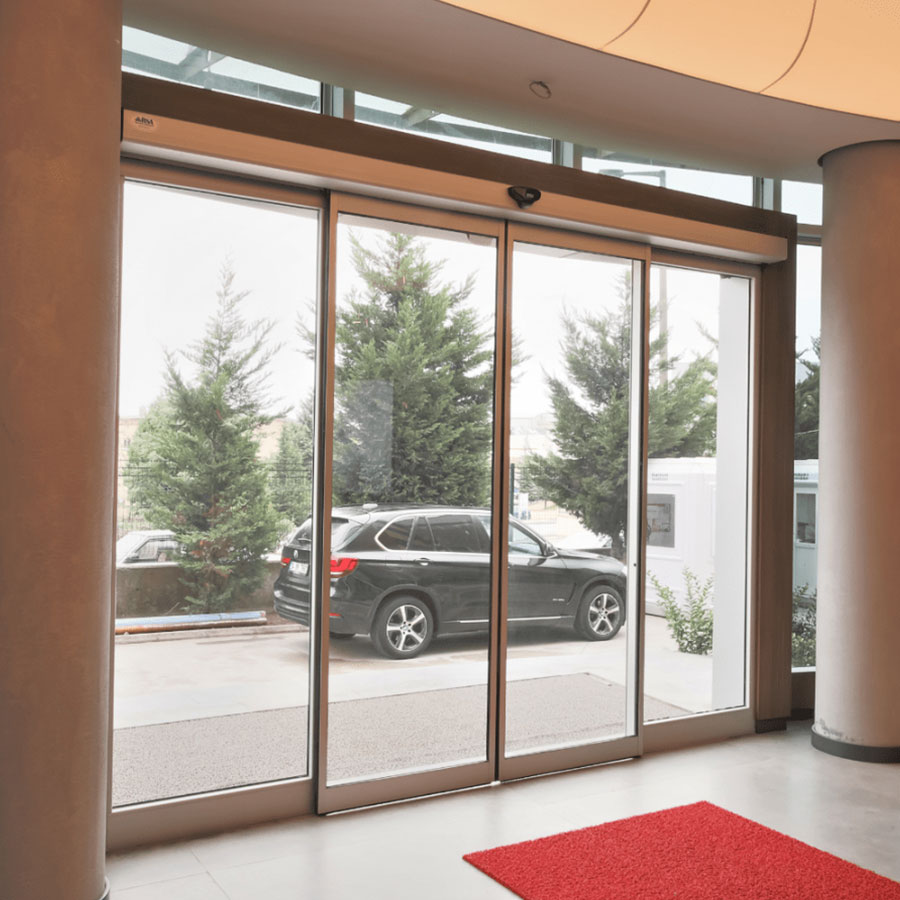

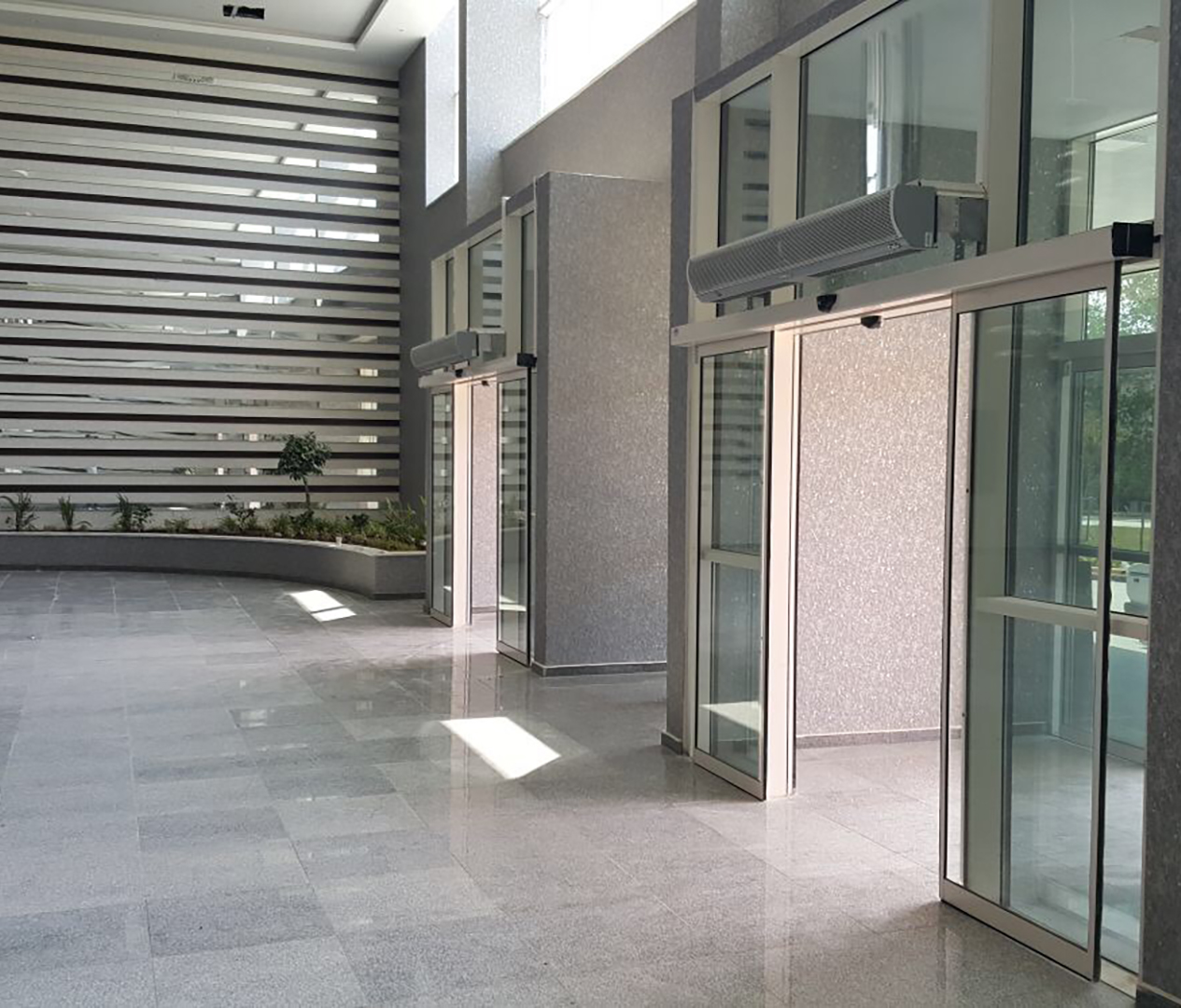

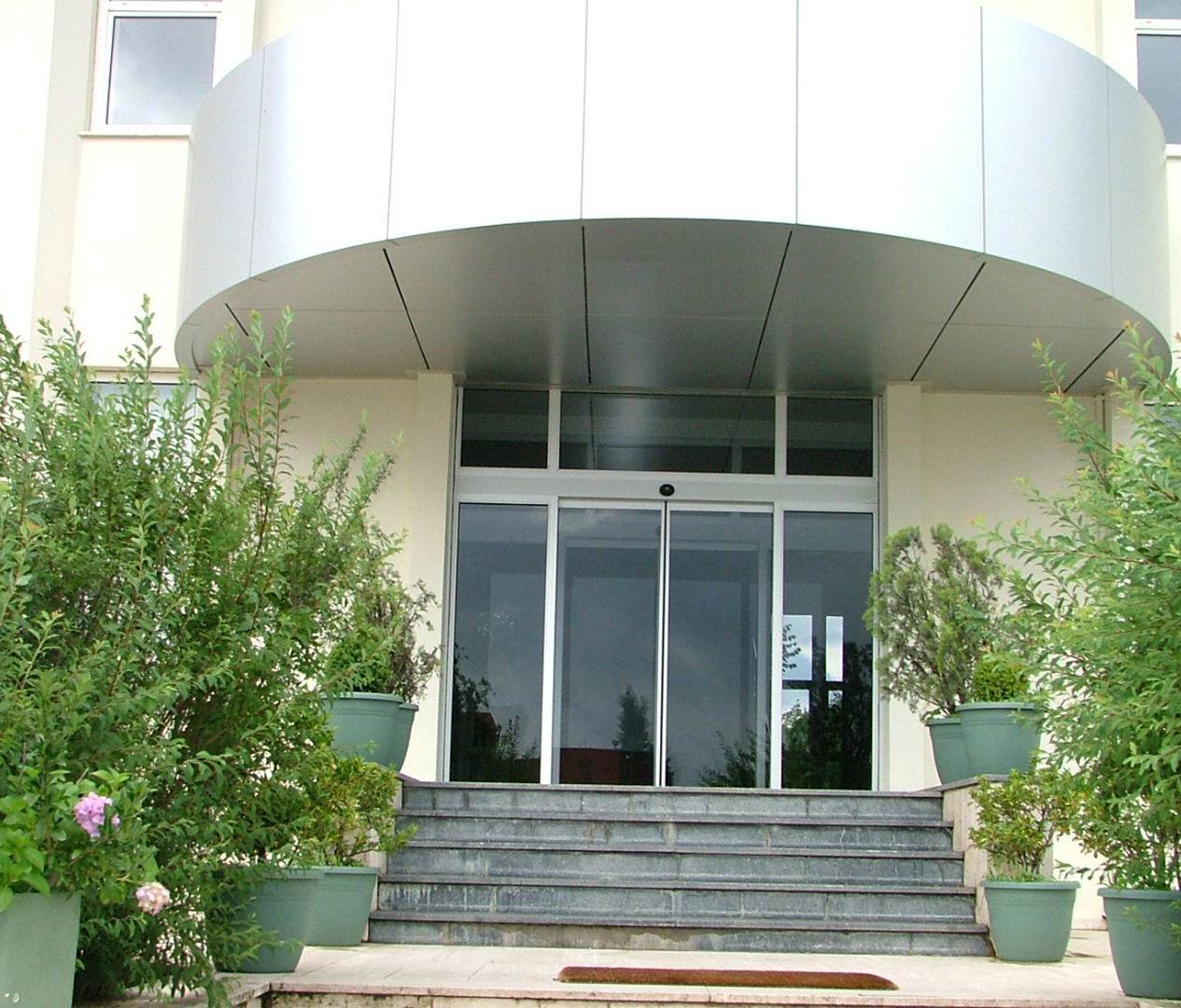

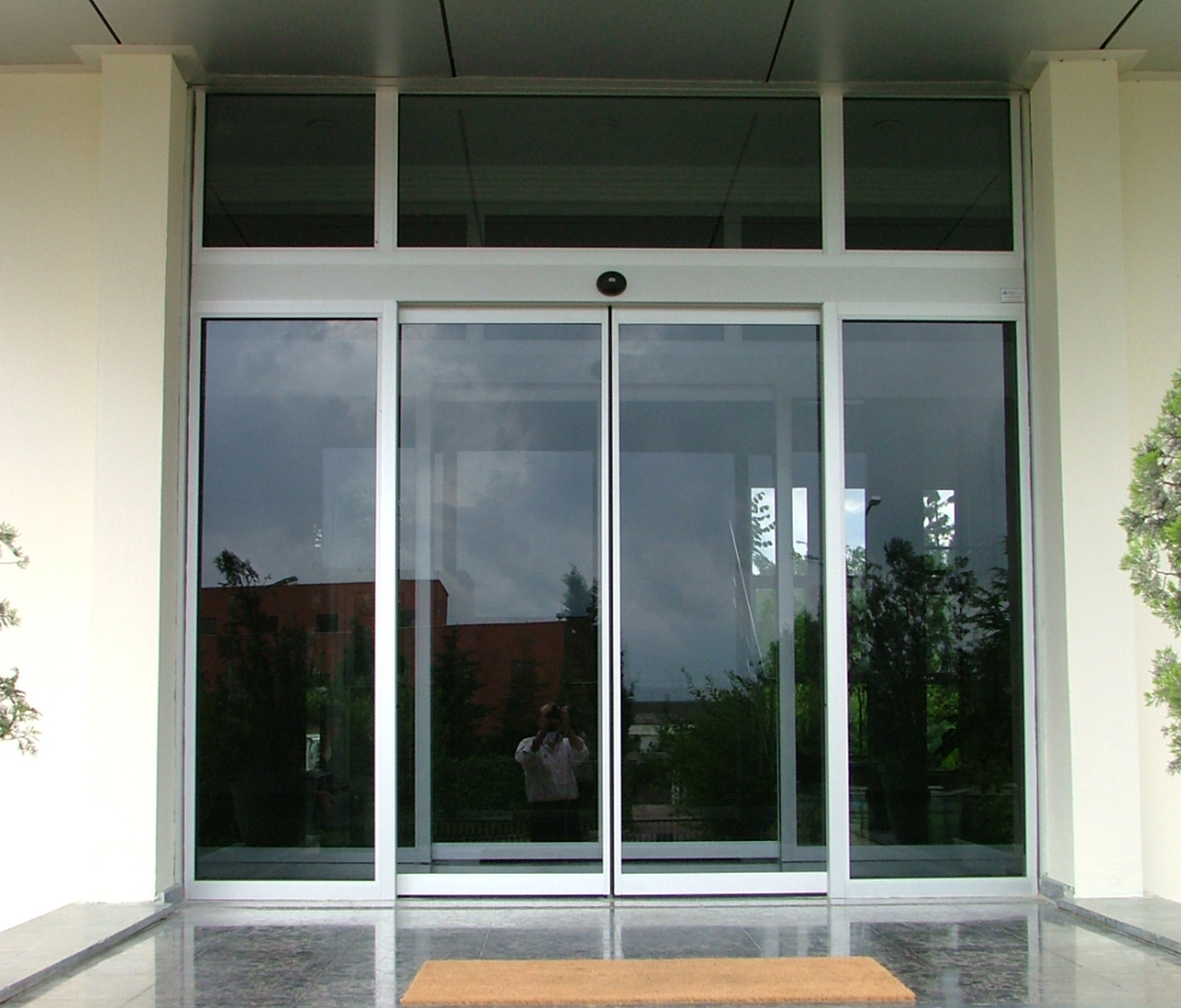

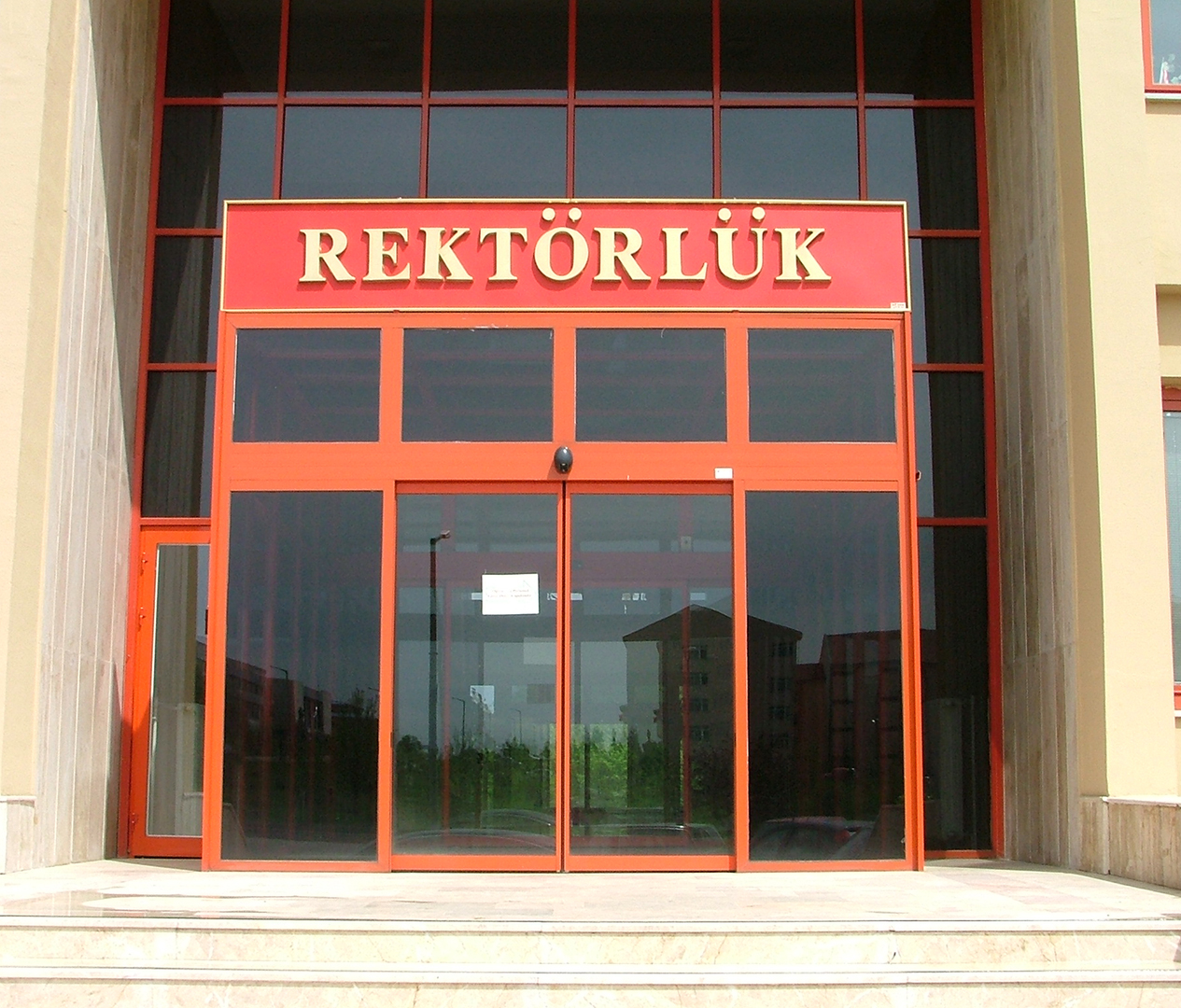

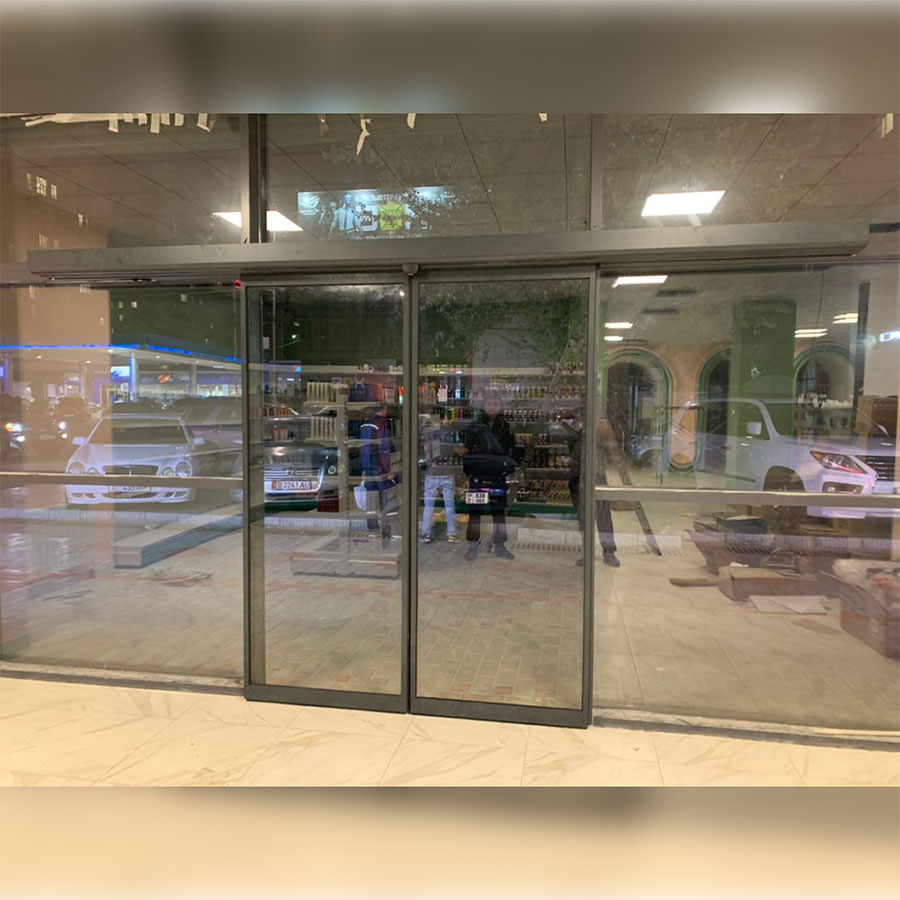

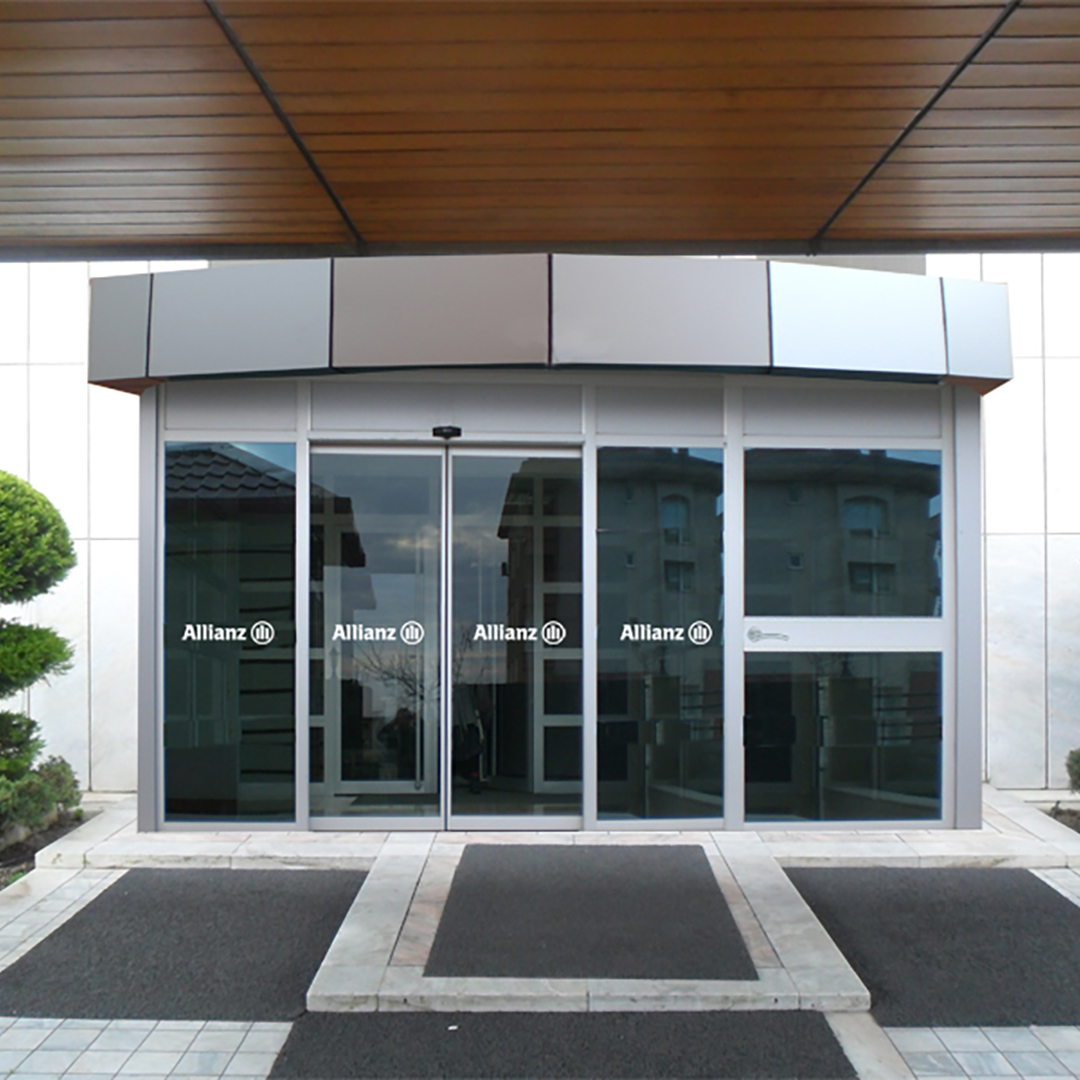

iCat® Sliding Automatic Door
Thanks to its compact dimensions, the iCat® A110 fits perfectly into any architectural environment, even in confined spaces.
FRONT COVER
- Available in natural or anodized aluminum.
- Plastic safety "parachute" that can be easily installed together with the fuselage.
- Narrow and wide series wings.
- Designed for locking in open position for easy installation.
DRIVE GROUP
- 24 Vdc gear motor with optical reader.
- Control unit.
- Complete with 2 wheels or 4 wheels (for the iCat A110 2-wing version)...
WHEELS
- Aluminum
- 2 polyamide support wheels.
- Wheel height adjustment (+-) 7,5 mm
iCat A110 CONTROL UNIT
- iCat control unit microprocessor with locking batteries and electromechanical locking system.
- 220 Vac circuit on/off power unit.
- Removable terminal panel.
- Automatic adjustments
- Open and closed position definition.
- Speed selection, optimal acceleration or deceleration.
- Photocell test.
- 150 N force impact protection device during operation.
- Speed adjustment and KUR application option possible directly on the card (no external program required)
- RESET (restart) function.
- 4 adjustable output points.
- 2 emergency entry points.
- Locking function.
- Alarm function.
- LCD display to detect status and damage.
- Opening and closing speed adjustment.
- Pause timing.
- Night pause.
- Motor lock.
|
Model |
Leaf |
Free passage width |
Wing maximum weight |
|
iCat A110 |
1H |
700mm 3,000mm |
250 kg. |
|
iCat A110 |
2H |
800mm 3,000mm |
160 kg.+160=320 kg. |
|
Supply |
230 Vac 50 (60) Hz |
|
Electrical power used |
100W |
|
Frequency of use |
one hundred% |
|
drive unit |
24 Vdc motor with reader |
|
length |
VP x 2 + 100mm |
|
No-load opening adjustment |
5 60cm/s |
|
No-load closing adjustment |
5 55cm/s |
|
Partial opening adjustment |
10% 90% at full opening |
|
Pause time setting |
1 60 s |
|
Night pause time setting |
0 240 s |
|
anti-collision device |
Standard use |
|
Failsafe for photocells |
Standard usage (can be blocked) |
|
Protection class |
IP 23 (for internal use only) |
|
Process environment temperature |
(-)20C (+)55C |
