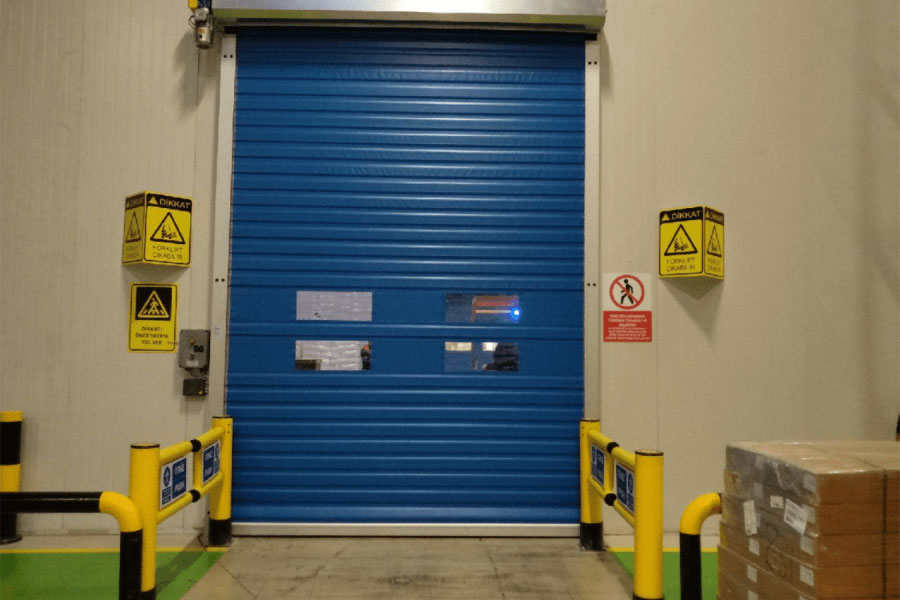

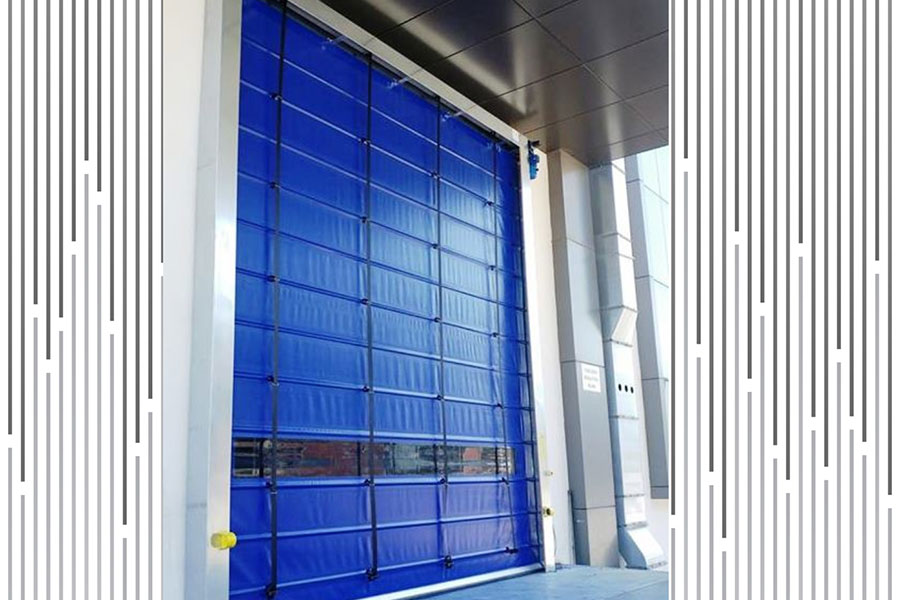

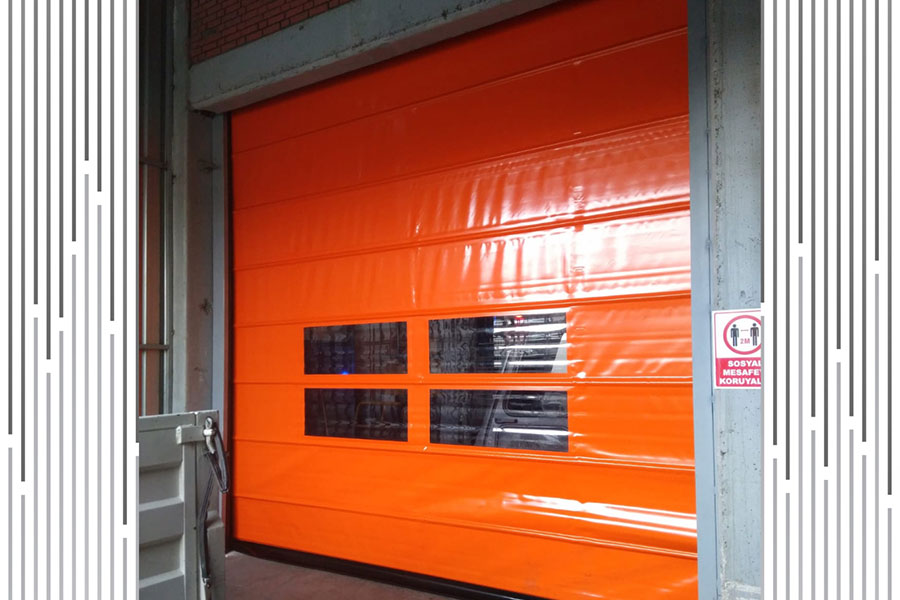

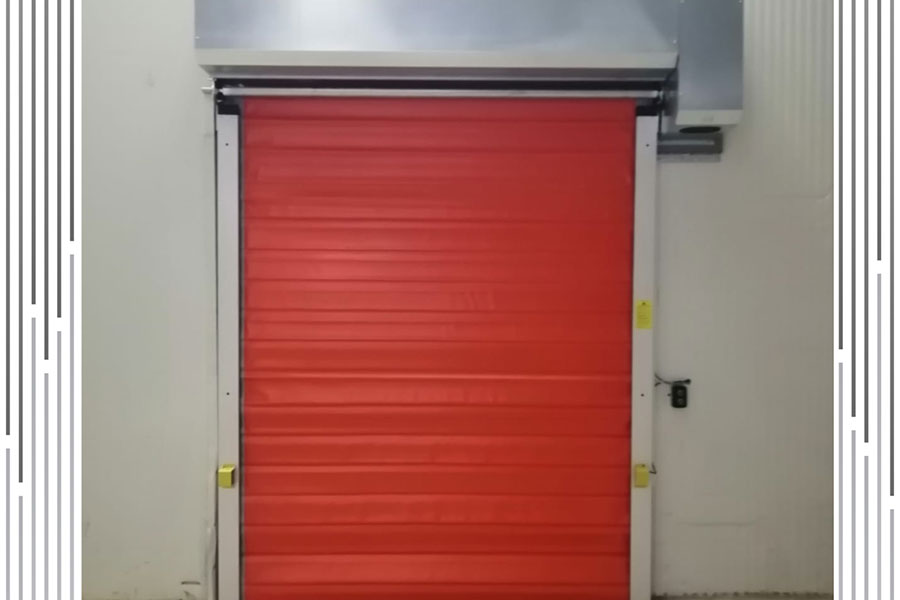

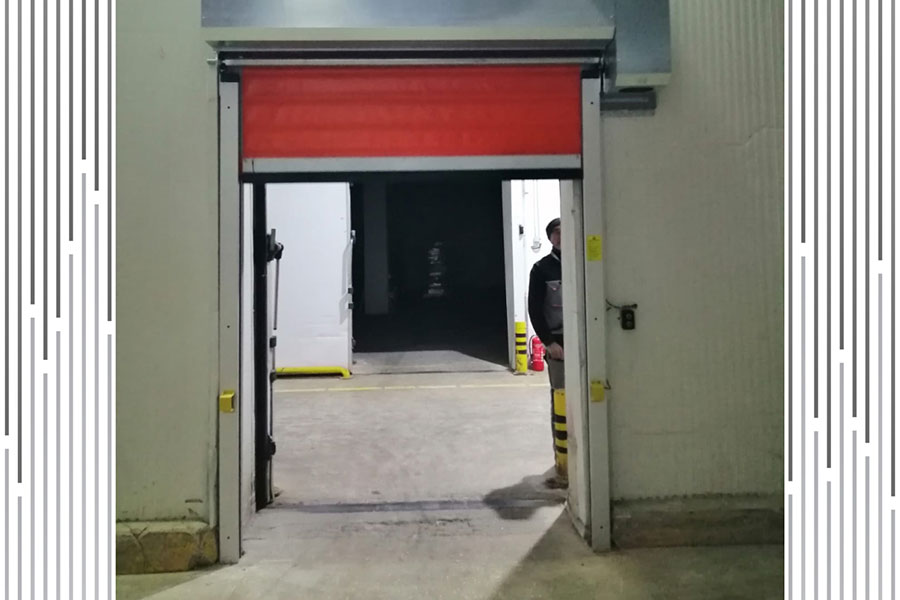

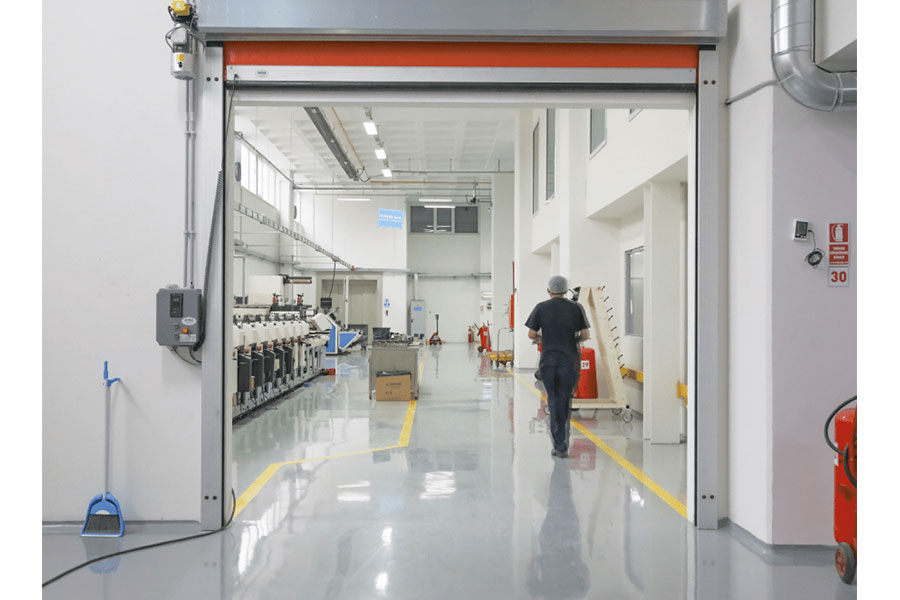

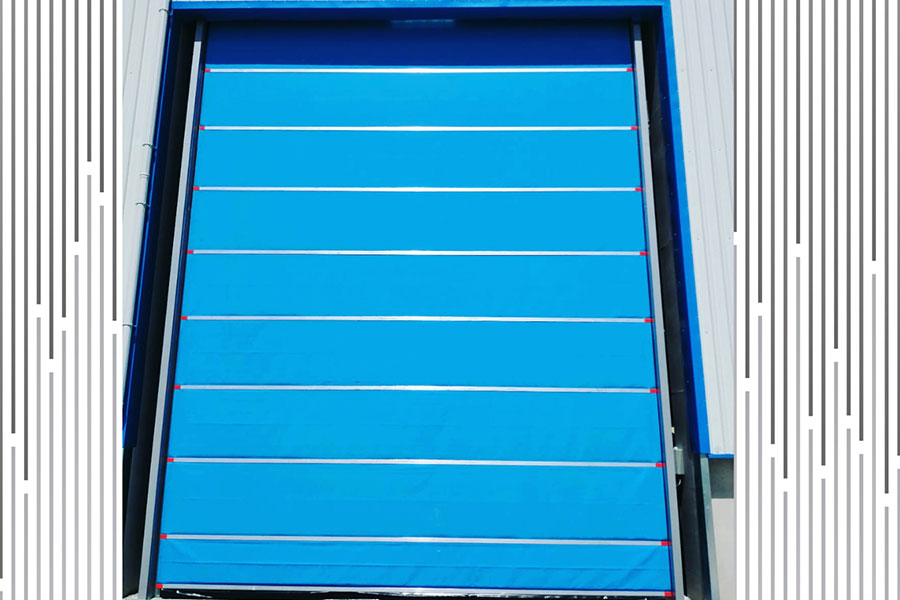

iCat® High Speed PVC Door

iCat® High Speed PVC Door , if your expectation from the industrial door in your facility is to operate in heavy traffic, variable and harsh weather conditions, iCat® High Speed PVC Door should be your choice of industrial PVC rolling fast door.

iCat High Speed PVC Door minimizes the negative effects of alternative door systems such as cumbersome operation, waste of time, unwanted air currents, energy losses, dust pollution and hygiene thanks to its performance of opening and closing hundreds of times a day in the external or internal sectors of your facility.

  • With these unique features, high working performance and aesthetic approach, iCat High Speed PVC Door is a profitable investment and an indispensable product for your facility and provides controlled access.
  • iCat High Speed PVC Door The specially designed control panel provides ease of use.
  • iCat High Speed PVC Door Gearmotor and brake system is specially developed for very intensive use.
  • iCat High Speed PVC Door Switch system provides precision at door end points.
  • Standard safety photocell fog minimizes the risk of hitting people or objects when the door is in motion.

Product Technical Specification

  • Uprights 1.5 mm galvanized steel uprights (ALUMINUM Uprights Optional)
  • PVC roving on uprights
  • Side flags 3 mm galvanized steel flag
  • Bearings 25 almond bearings
  • Drum pipe 114x3 steel pipe
  • Flanges steel 25 flange
  • Anodized aluminum sub-base PROFILE and EPDM sub-tire + bump-out system
  • Curtain 900 gr/m2 1100 DTEX tarpaulin

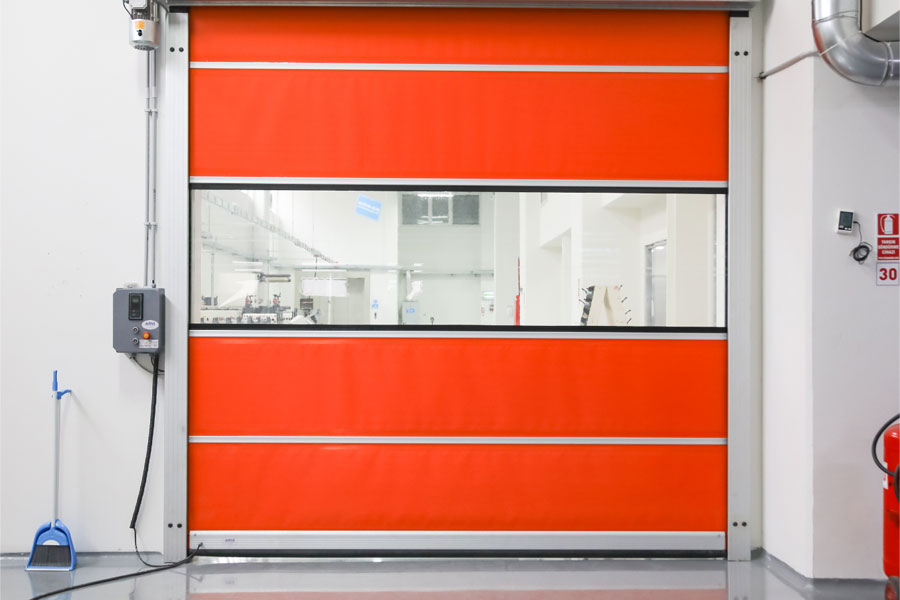

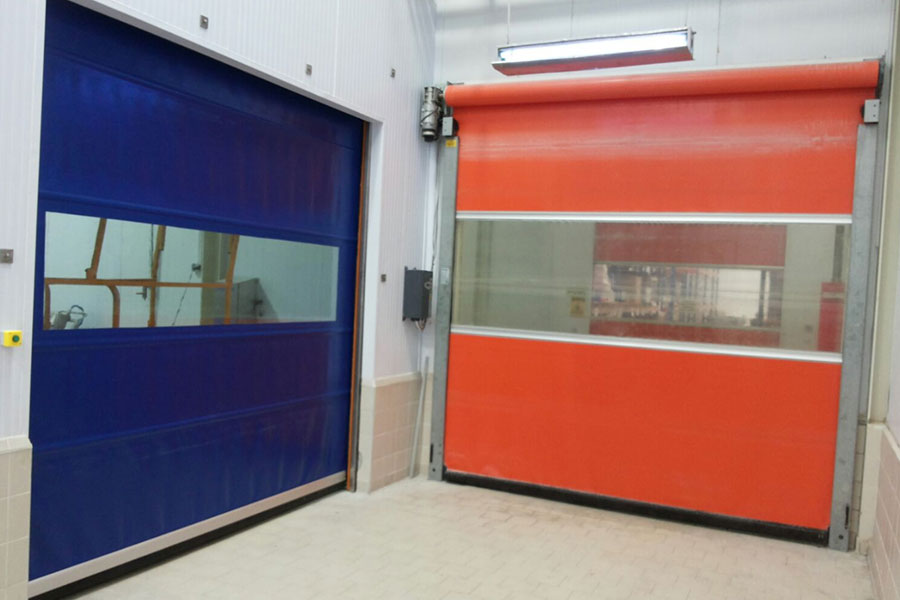

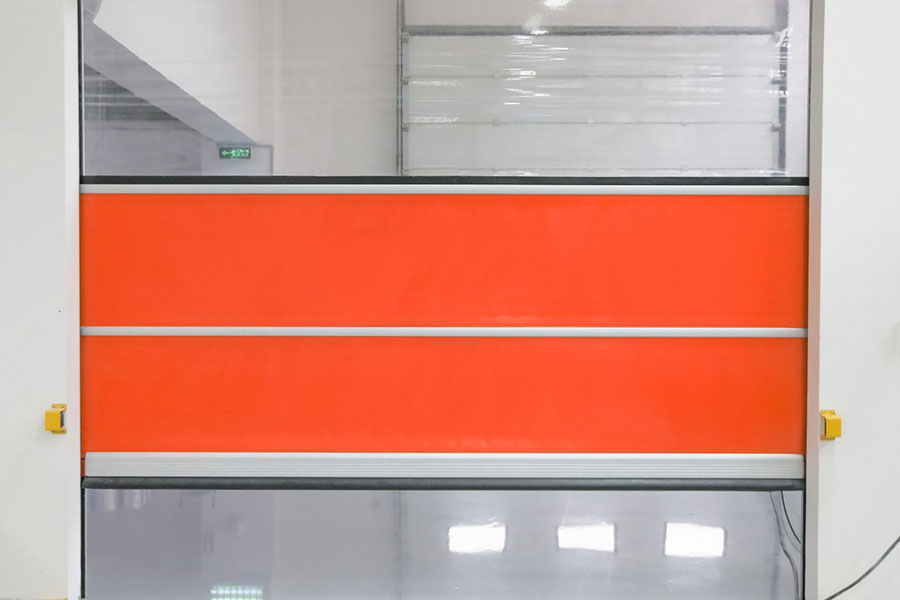

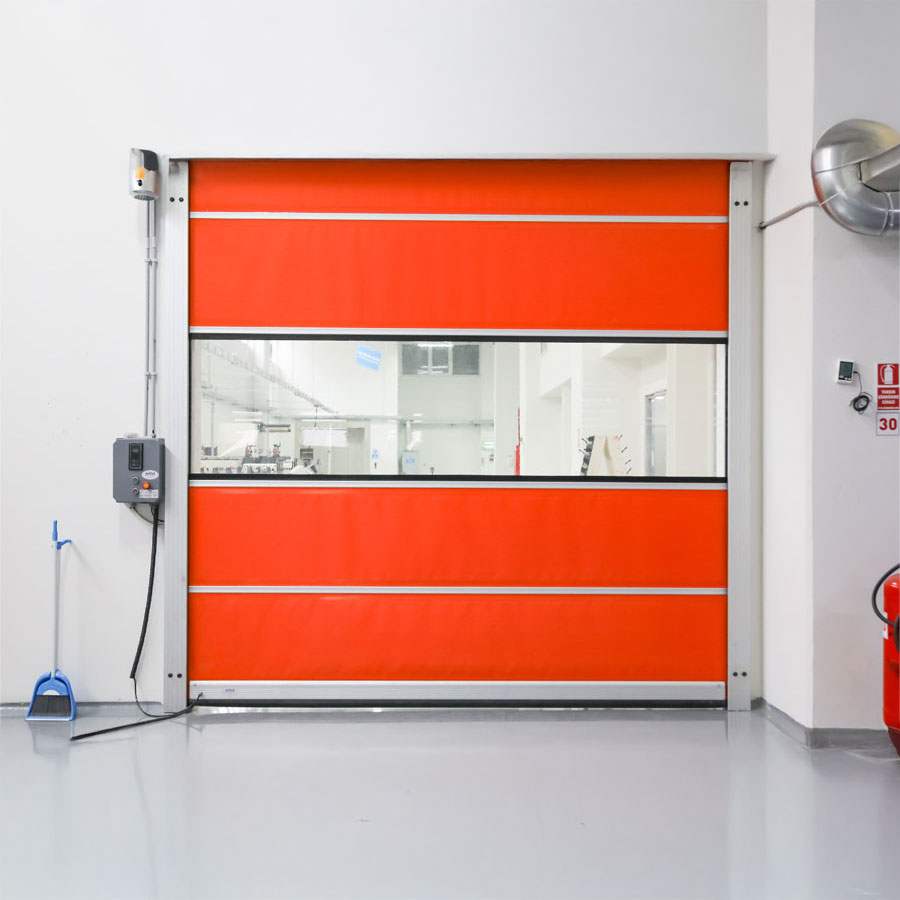

  • Transparent section 2 mm 1 row at eye level at a height of 60 cm
  • Wind bars, tubular steel profile bars in curtain pockets
  • Switch 2 contact belt drive RAVIOLI
  • Motor 0.75 KW with manual opening control
  • 1 set safety photocell is standard
  • Fixed speed control panel with digital PLC display
  • Motor, panel, brake, switch cables
