iCat® Hermetic Door (Sliding)

Hermetic technology for hygienic environments The iCat® Hermetic Door is specifically designed for use wherever hygiene and sealing are critical. Introducing the iCat® Hermetic Door, a state-of-the-art solution designed to meet the highest hygiene and safety standards in a variety of industries.

iCat specially designed Hermetic doors are based on the principle of a self-sliding door leaf, with a gasket surrounding the door leaf, providing a low-pressure passage between two rooms with different pressures.

Areas of Use

  • High or low pressure sterile halls, rooms,
  • Hospitals and clinics, especially operating rooms and laboratories,

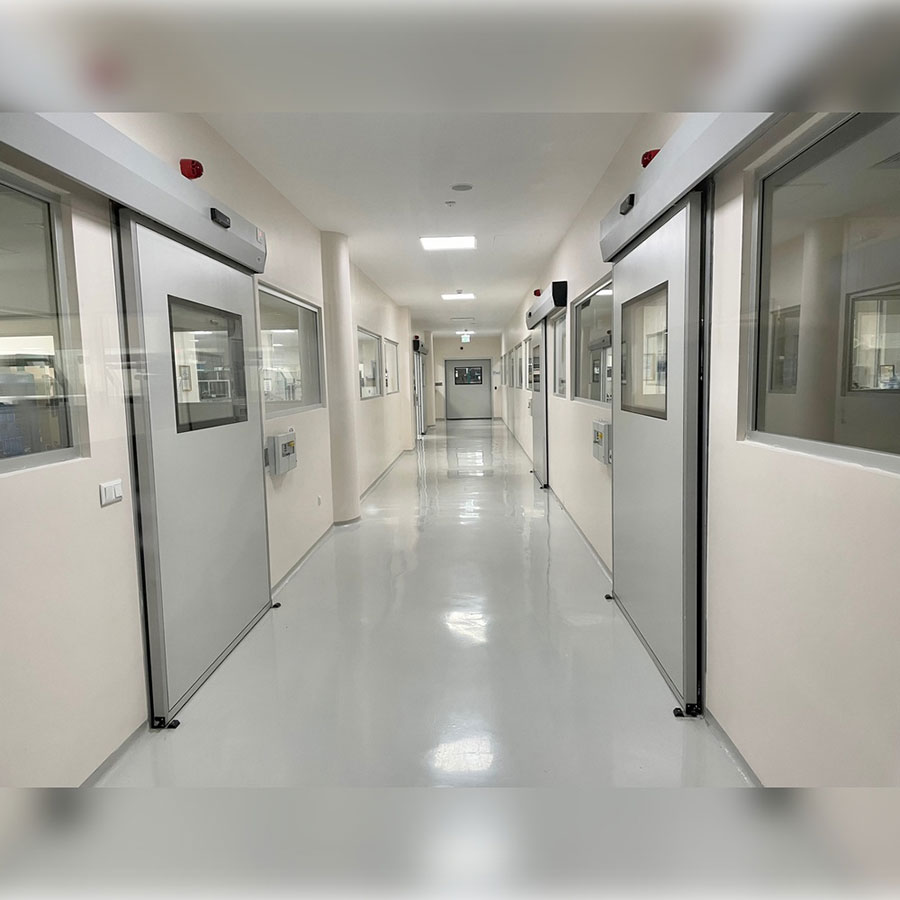

  • Production environments with special hygiene requirements, environments that require a high degree of sterility such as pharmaceutical, food production, chemical and pharmaceutical products and semiconductors, smart card and valuable document printing facilities.

System Specifications

  • Safe, aesthetic, hygienic and comfortable
  • Designed for intensive use
  • High degree of tightness due to sliding down of the door at high pressure differences
  • Wide range of accessories
  • Different window types possible on the door leaf according to customer preference

Mechanism Technique

  • Closure by moving in 3 directions, three-dimensional sash adjustment
  • High-quality materials and the latest control technology suitable for the connection and evaluation of up-to-date detection systems
  • High user comfort thanks to parameter setting and status reading via program switch with digital display

Low Pressure Permeable Closure Feature

  • The door leaf, equipped with a self-encircling seal, is lowered and pressed against the frame.

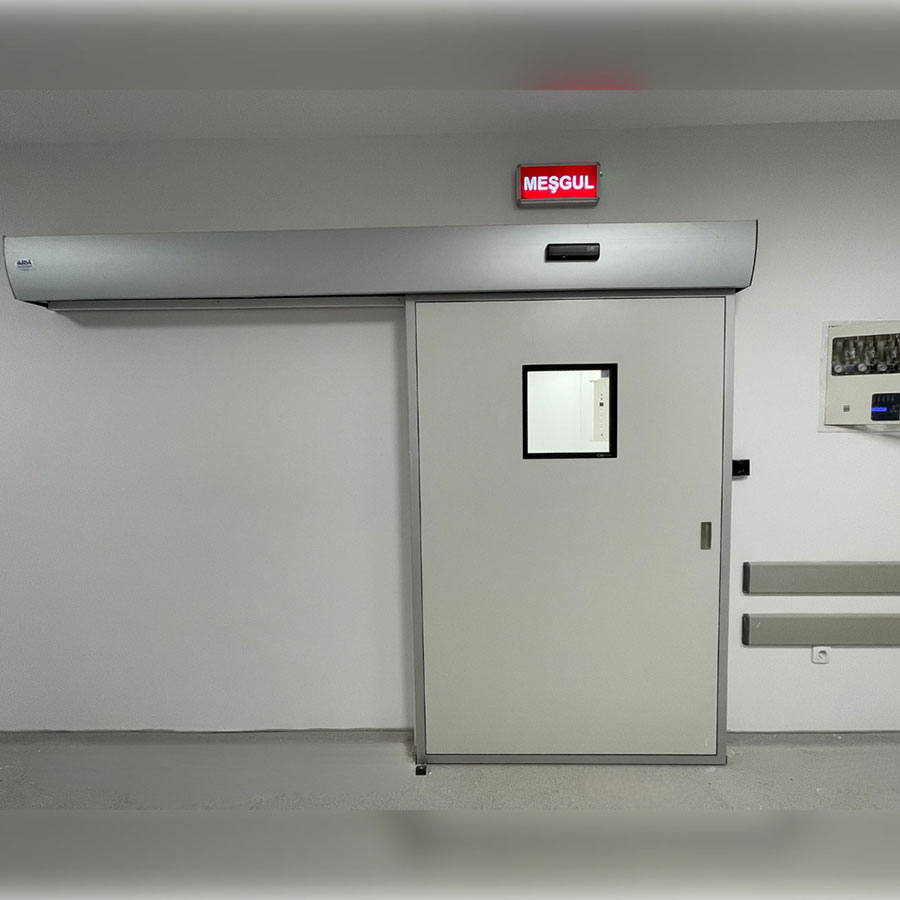

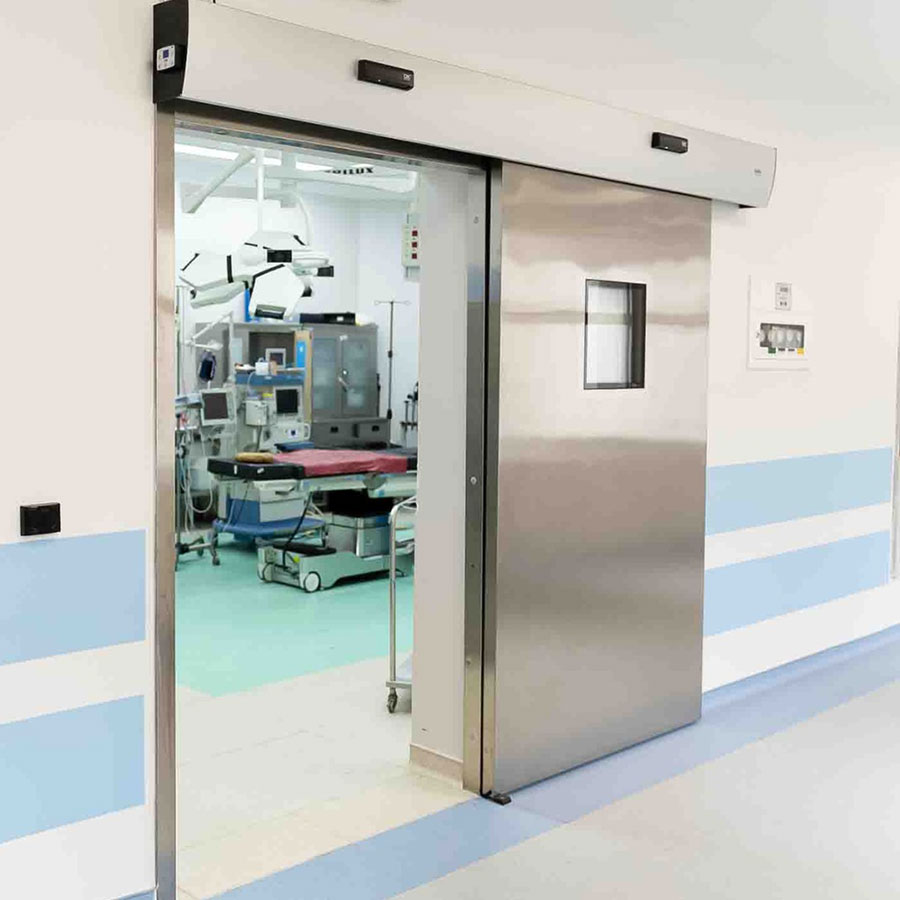

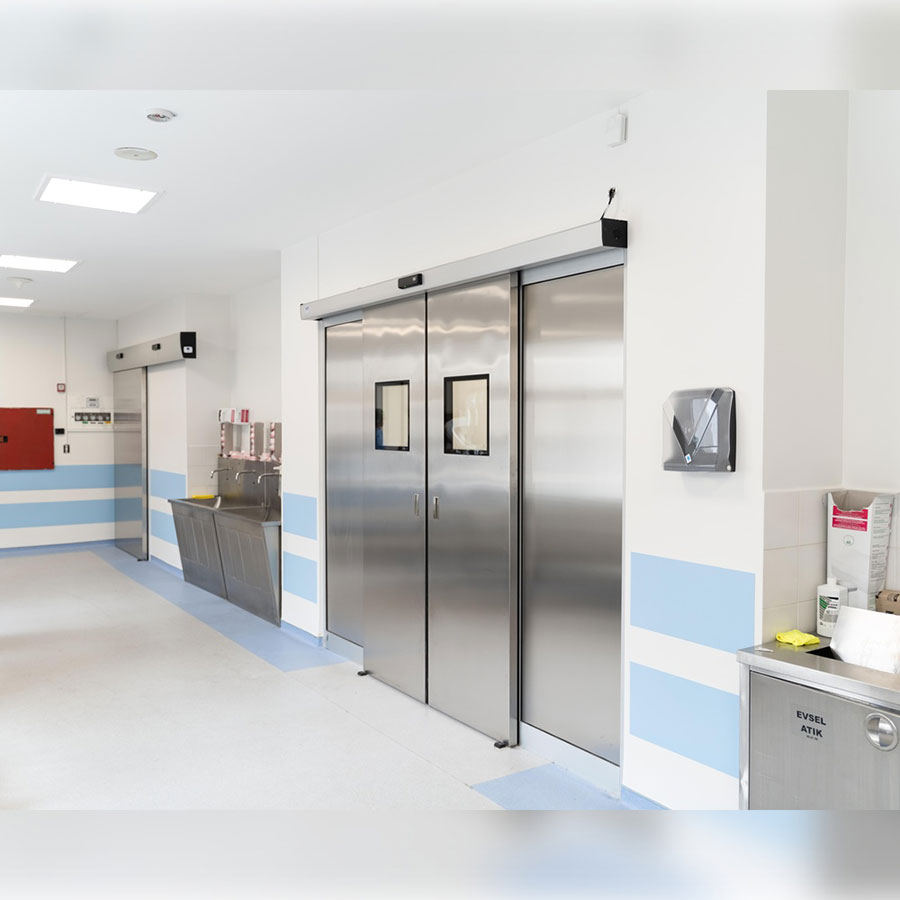

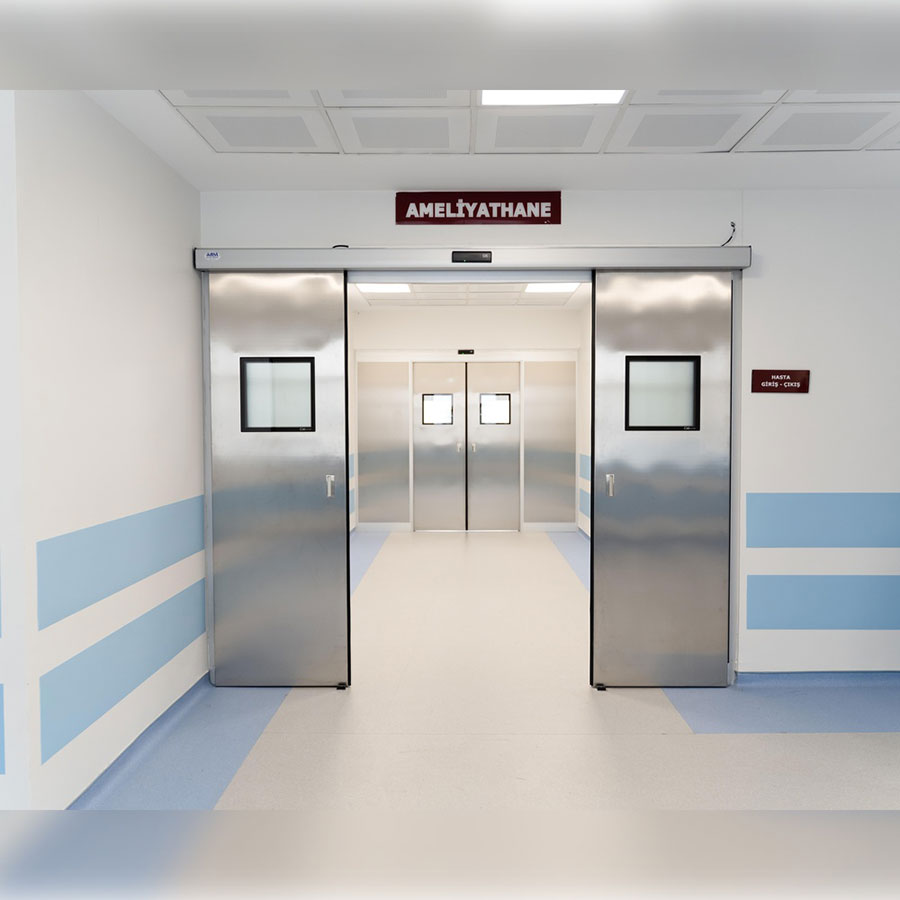

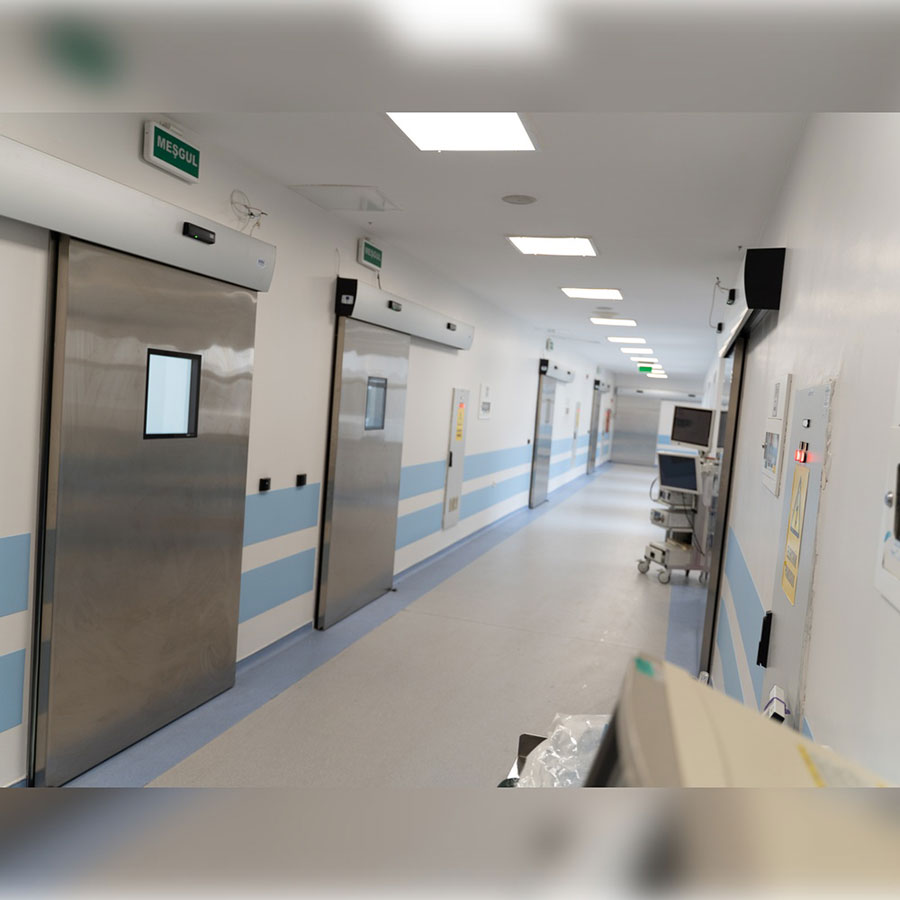

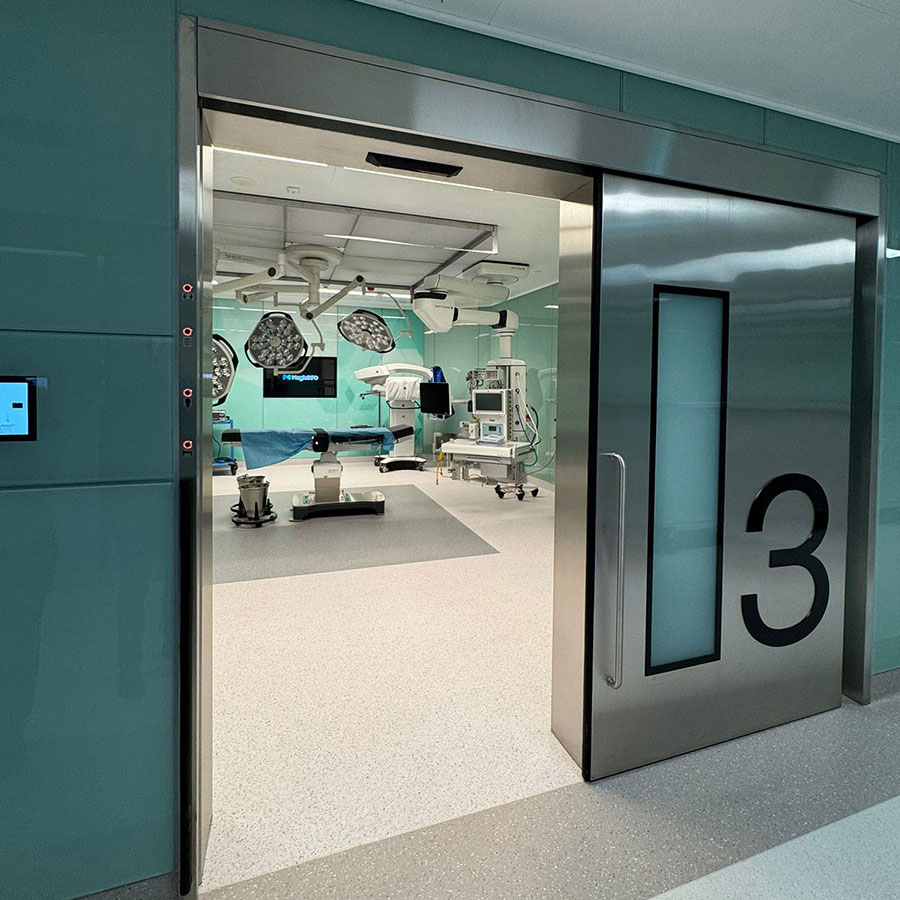

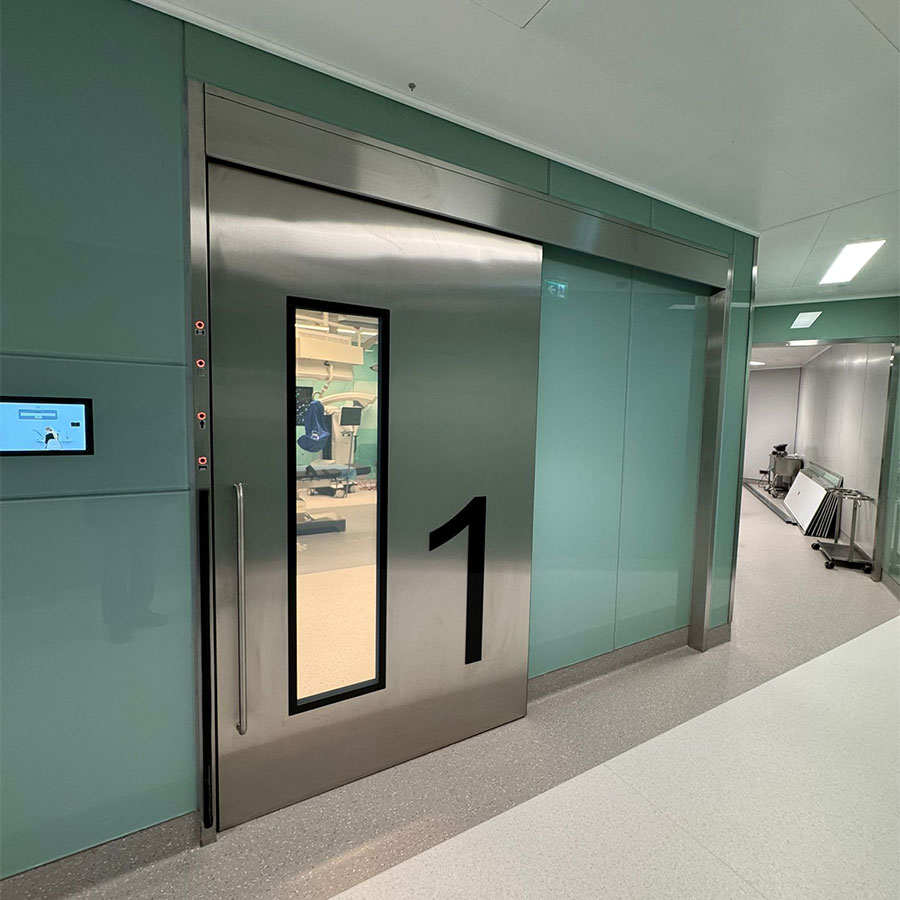

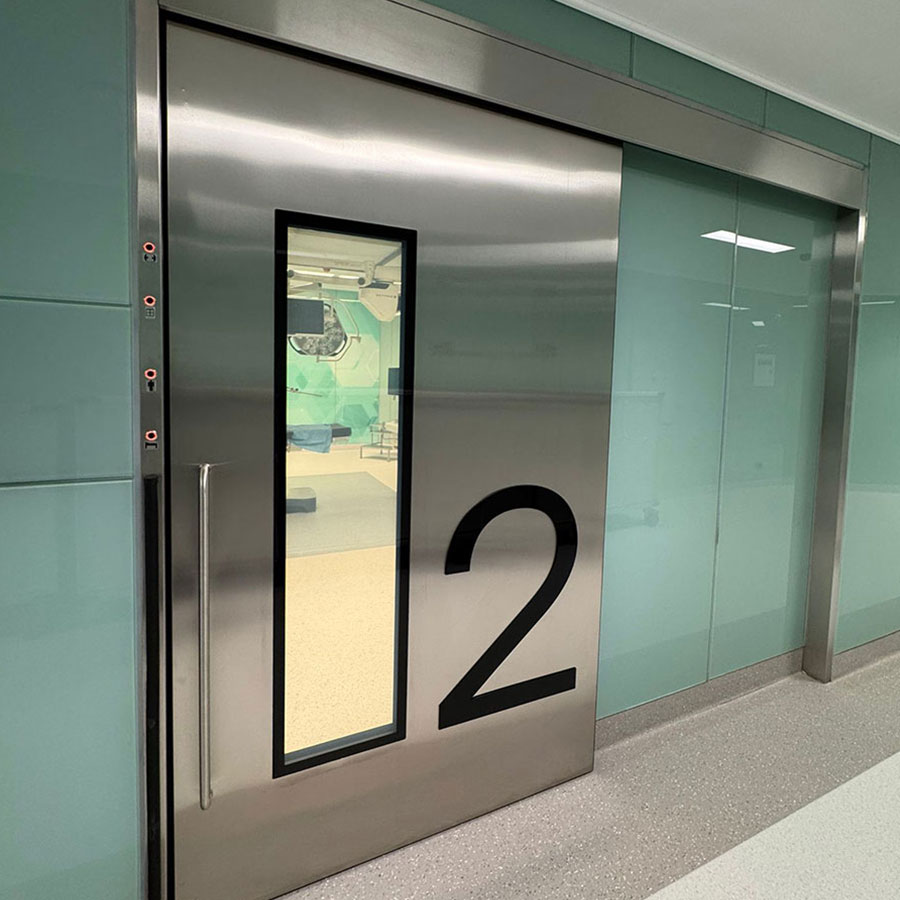

Hermetic Sliding Doors of the Hospital Doors series are an integrated solution for Operating Rooms or Clean Rooms, as they maintain the pressure differential between inside and outside of the operating room or operating theater. The sliding option allows a wide opening for the passage of sanitary personnel and stretchers, up to one and a half meters in single-leaf doors.

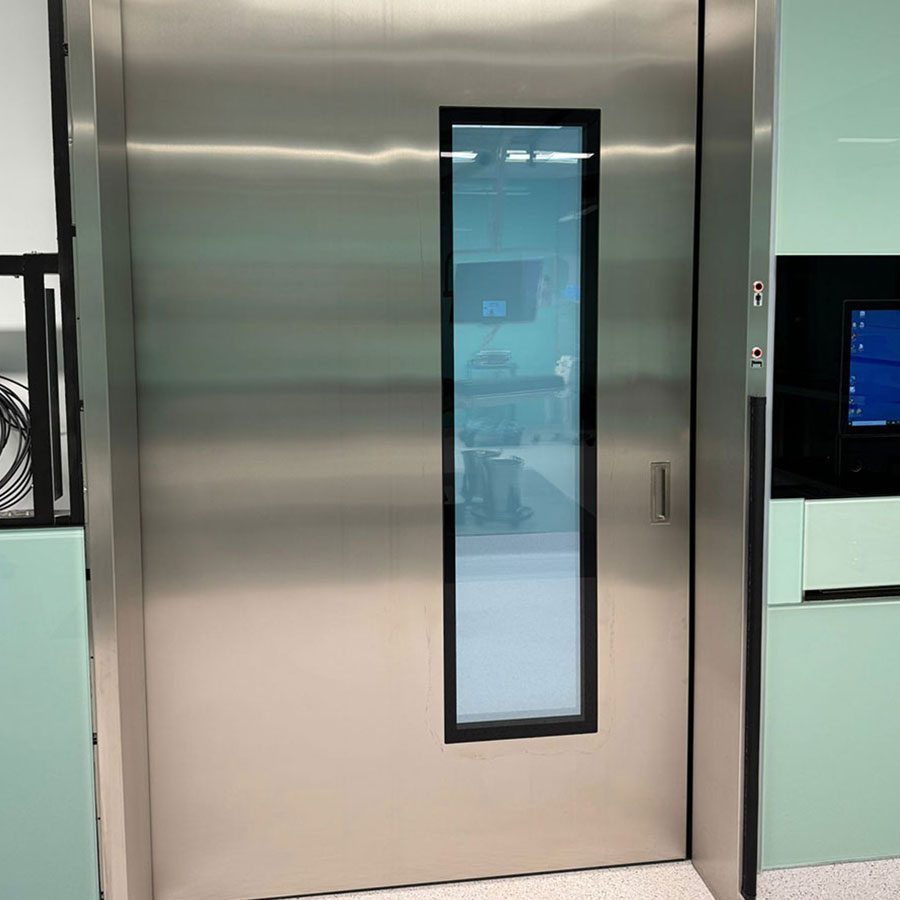

 RSA Hermetic Door leaf components are manufactured in 304 or 316 Stainless Steel, Antibacterial High Pressure Laminate, HPL and glass finishes and lead cladding can be added in 1-4 mm thicknesses for radiological rooms or acoustic insulation.

 Weather seals are on the movable leaf. Not on the door frame.

 Maximum safety according to European regulations (EN 1026 and EN 12207 Class 4 and EN 16005)

Technical Datas

Mechanism Dimensions

255 x 151 mm

Types

Single leaf, closed on the left or right side

Maximum opening width

2000 mm

Maximum passage height

2200 mm

Maximum weight per leaf

400 kg

Maximum leaf area

4 m²

Open/Close speed

Max 0,5 m/s

Hold open time

0 - 60 sn

Supply voltage

50 / 60 Hz'te 230 VAC +%6-10

Power consumption

Max 300 VA

Protection class

IP 20

iCat Patented Quality

 iCat quality was registered as a useful invention by the Turkish Patent Institute in 2021.
