iCat® Full View Aluminum Sectional Door

"RSA iCat Sectional Doors offer fast, reliable and smart solutions for different areas of need" iCat® Full ViewAluminum Sectional Door is the type of door that highlights your buildings by providing high-level visuality among sectional door models.

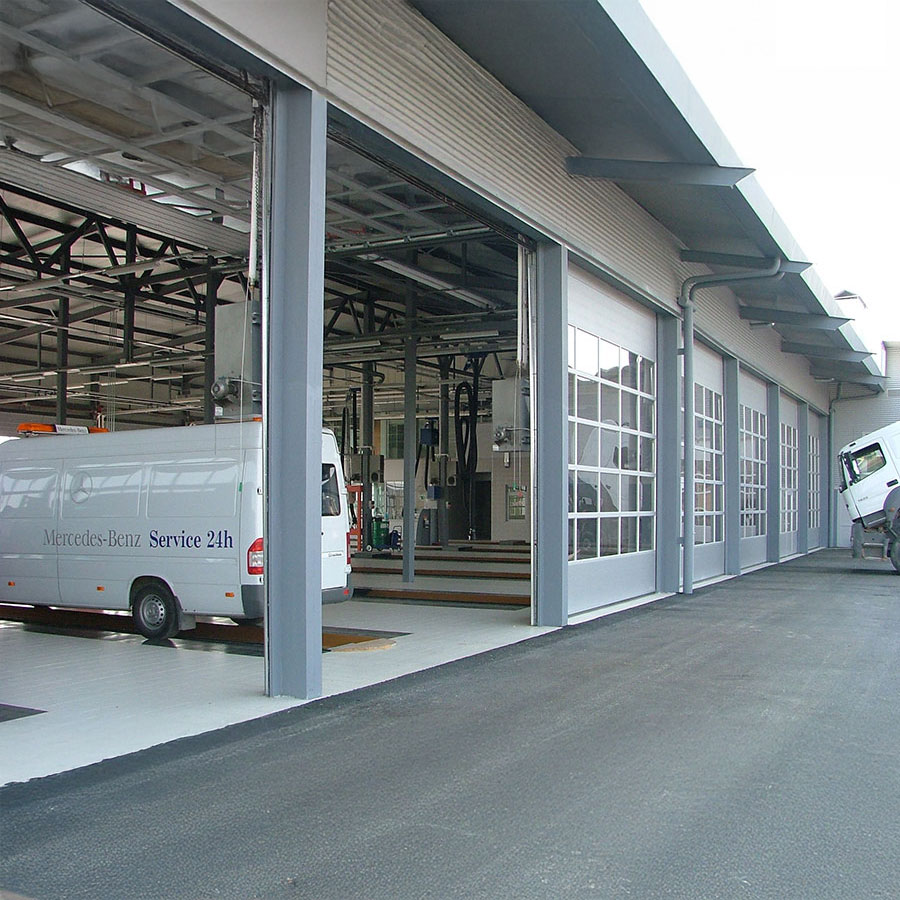

The iCat® Full View Aluminum Sectional Door is designed for buildings and showrooms where plenty of natural light is required or where there is a need to see inside. It has a very strong aluminum structure that gives it a light and elegant appearance.

The panel height can vary from 500 mm to 610 mm, making it possible to match the style of the door to the style of the building.

The iCat® Full View Aluminium Sectional Door is available with a wide range of inlays and in all colors in the RAL color range. There are virtually no limits to the options available, making it possible to design the appearance of the door exactly as you want it.

The iCat® Full ViewAluminum Sectional Door is manufactured in accordance with European guidelines and meets all rules and norms.

DOOR PROFILES (ANAODIZED ALUMINUM)

Anadize Aluminum Profile thickness is 1,6 mm and hinge connection points are 2,6 mm. Edge profile dimensions, cross-sections of center registers and horizontal registers are specified as follows.

DOOR METAL FITTINGS (FLEXI FORCE - HOLLAND)

Steel Rails: It is the material on which the galvanized door moves, which can be placed in standard, high or guillotine form according to the gap on the door.
Torsion (Bending) Springs: Minimizes the weight of the door and reduces the load on the motor. The torsion spring mechanism balances the weight of the door and allows the door to be opened and closed easily by hand in case of power failure or in mechanical (manual) doors. Torsion springs min. 20,000 units are produced for opening-closing.
Open-Close-Stop Buttons: Can be applied from inside or outside. The movement of the door is provided by the buttons.
Control Box: It is on the motor. It is the place where the opening and closing of the door is programmed. The options selected for opening and closing the door can be introduced to this panel and started to be used.
Insulation Wicks: These are elastic seals located on the right, left, bottom and top of the door. It provides isolation at the points where the door meets the blind frame and the wall.
Pneumatic Safety (STANDARD IN MOTORIZED SYSTEMS) : When the sensor in the pneumatic wick under the door encounters any obstacle during the downward movement of the door, it makes a soft touch on the obstacle and allows the door to return upwards.
Spring Safety System (OPTIONAL): In case of spring breakage as a result of overload, it locks the spring, prevents the spring from dispersing by taking its gap and ensures that the door does not fall.
Rope Safety System (STANDARD): Prevents the door from falling as a result of rope breakage as a result of overload.
Prismatic Safety Photocell Security System (OPTIONAL): It is installed at a height of 40-60 cm from the floor on both sides of the door. If the laser beam sent from the receiver is momentarily interrupted while the door is closing, the door stops and returns.
Service Door (OPTIONAL): With safety switch and door pull system for pedestrian passage inside the door. The system does not work when the door is open.
Bearing Types: Standard / High / Vertical and Low bedding options are available. The bearing system is determined according to the door gap dimensions.

MOTORS: FLEXIFORCE 10024 -400 V (THREE-PHASE) INDUSTRIAL TYPE DOOR MOTOR

Direct drive to the torsion shaft (shaft), ability to work with drivetrain

Electronic limit switch control and buttons on it

Ability to mount in narrow distances

Ease of installation in different systems

Chain motor with manual operation

CE European certificate of conformity

Designed for intensive work

Voltage : 400 V-/50 Hz

Power : 0.30 / 0.45 / 0.70 kW

Motor Torque : 60 /100 /150 Nm

Rotation Speed : 24 RPM
