iCat® Revolving Door

iCat® Revolving Door

Energy savings, excellent management and stylish looks...

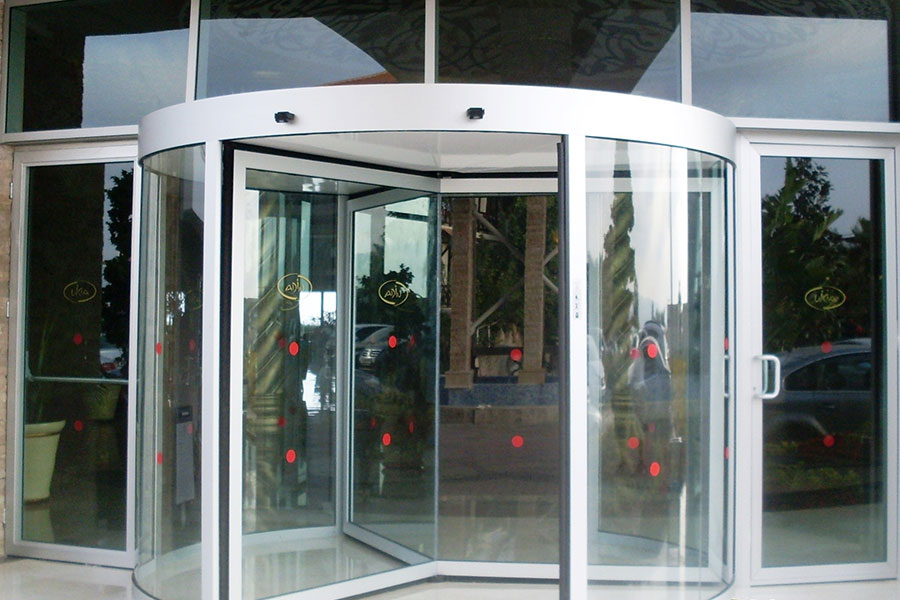

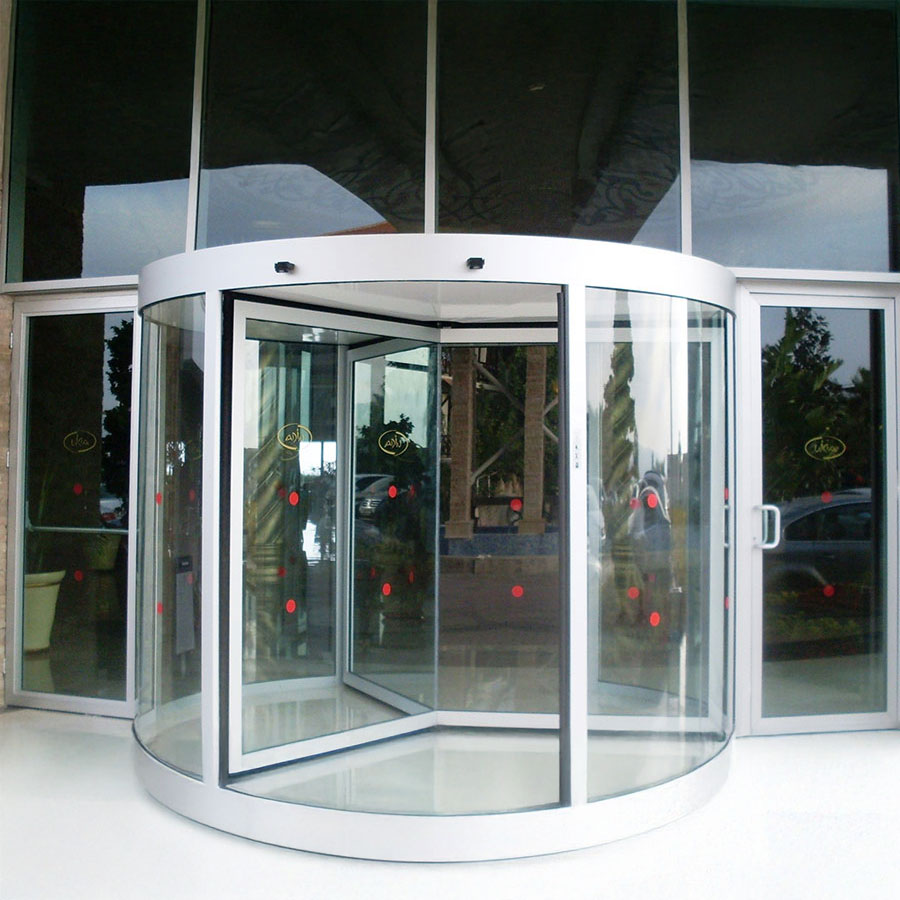

 iCat® Revolving Door is the primary choice of those who consider function and aesthetics together in architecture. It is preferred with its elegant appearance, advanced technology in production, fully automatic or semi-automatic and manual options. It is an ideal solution for keeping the temperature level inside the building constant. It effectively manages the density at your entrances.

iCat® Revolving Door systems installed with state-of-the-art activation and safety sensors and the system's self-monitoring processor are safe, robust and energy efficient. Automatic revolving door systems are also equipped with emergency battery backups and fire alarm connectivity, allowing them to be used in emergency escape routes.

Technological advantages

With its high-tech operator and motor, iCat revolving doors meet all the requirements of modern standards.

Economic models and leaves

iCat revolving doors are produced in 3 different types: 2-leaf, 3-leaf and 4-leaf. From the models that are suitable for the demands of architectural offices or designers, the most economical models according to market conditions are offered under the name of RSA assurance.

Material diversity

 Differences in body materials provide customers with a rich choice in the selection phase. Stainless steel (304 and 316, matt and polished), copper, brass and bronze finishes are available as cladding on the aluminum body. This makes it easy to choose the most suitable look for your design.

  • Possibility of production in accordance with the project
  • Fully automatic, semi-automatic and manual options
  • With radar sensor in fully automatic models
  • Aluminum, bronze, stainless steel body options.

Motion and safety systems

  • Radar
  • Obstacle detection sensor
  • Magnetic positioning sensors (optional)
  • Rotating wing safety system against impacts
  • Safety system that prevents pinching between the body and the leaf
  • Brushes

Technical data (iCat ® FV)

Product:

iCat ® Automatic Revolving Door

Revolving door Diameter

1800-4200mm

Passage width:

Varies depending on the number of wings

Passage height:

2250 -2500mm

Canopy height:

250-500mm

Surface:

Natural anodized (20 micron)

Number of wings:

2- 3 - 4 wings

· Equipment

Brushes:

Special horsehair brush

Aluminum sheet thickness:

2mm

Exterior ceiling plate:

insulated

External glazing system:

Curved 4 mm + 4 mm laminated glass

Internal wing glazing system:

8mm tempered glass

Colour:

20 micron natural anodized

Inside canopy:

Steel profiles (Aluminum optional)

Lighting:

LED lighting system (4W) between each wing

Locking system:

Manual lock + electronic switch

Mechanism:

Imported bearing bedding system

Suppository:

EPDM/PVC glass wick



· Automation

Engine:

BONFIGLIOLI (Italy)

Control unit:

SCHNEIDER ELECTRIC (GERMANY)

Activation:

HR50 HOTRON (JAPAN)

Security system:

ASO Safety Solutions (Germany)

Presence sensors:

Bircher Reglomatt (Switzerland)

Safety equipment:

Emergency stop system, disabled access system, manual operation

Hand and foot trap precaution:

Handshake sensor, presence sensor, heel sensor (optional)

· Options

Elderly-Disabled Passage Button

Standard

Handshake Safety Pneumatics

Standard

Heel Senor

Standard

Extra Safety Sensors

optional

Curtain Sensors

optional

Electrostatic powder coating

optional

Special Color Satin+Anodized

optional

Stainless steel application

optional

Night Protection Shield

optional

Anti-Panic wing

optional

Motion sensor

Standard

Continuous Rotation Mode

Standard

Night Mode

Standard
